Product Description

Product Description
China bitumen tank semi trailer axle price
Axle Type
HY 130C1-A
HY 130C1-A
HY 160C-A
HY200C-A
Max. Capacity (T)
13
13
16
20
L2 Track (mm)
1840
1840
1850
1850
Brake(mm)
420*180
420*220
420*220
420*220
Bearing
HM518445/10
HM518445/10
HM518445/10HM220149/10
HM518445/10HM32222/10
L3 (Spring Seat Installation)
≥930
≥930
≥940
≥940
Axle Beam (mm)
□150
□150
□150
□150
L4 Centre Distance Of Brake Chamber (mm)
372
354
354
354
Wheel Fixing
Stud
10XM22X1.5ISO
10XM22X1.5ISO
10XM22X1.5ISO
10XM22X1.5ISO
distribution circle (mm)
335
335
335
335
Center hole diameter (mm)
281
281
281
281
L1 Total Length (mm)
2165
~2165
~2200
~2258
Recommended Wheel
≥7.5v-20
≥7.5v-20
≥8.0v-20
≥8.0v-20
Axle Weight
370
370
408
448

WHEEL SPACING CAN BE CUSTOMIZED ACCORDING TO USERS

AXLES CAN BE EQUIPPED WITH ABS BRAKES AS REQUIRED.

Drum brake circumference, disc brake axle, German axle, American axle

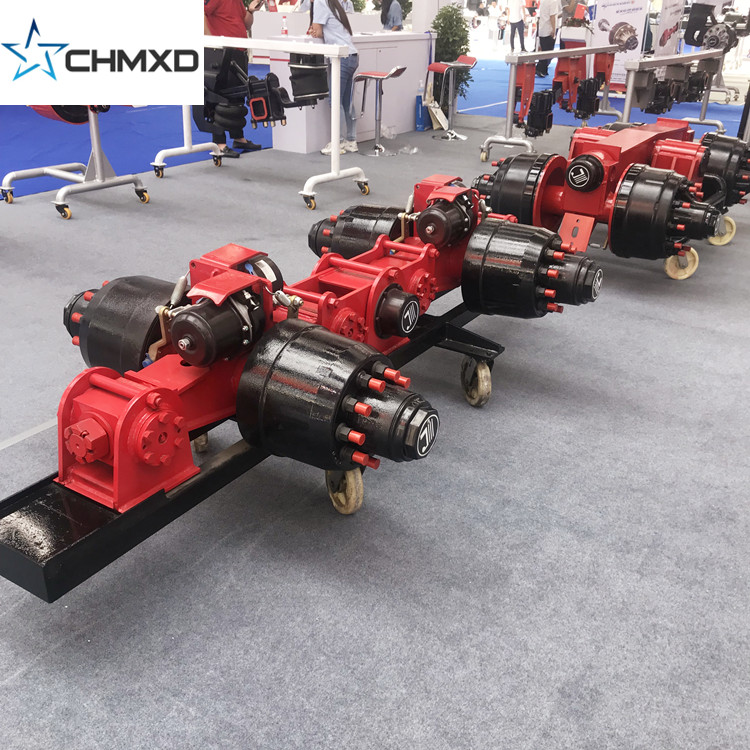

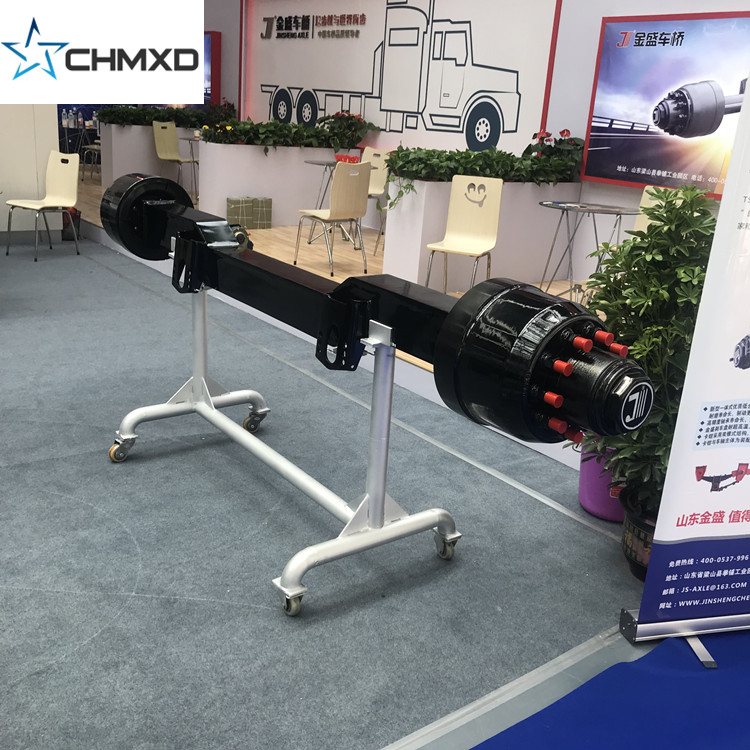

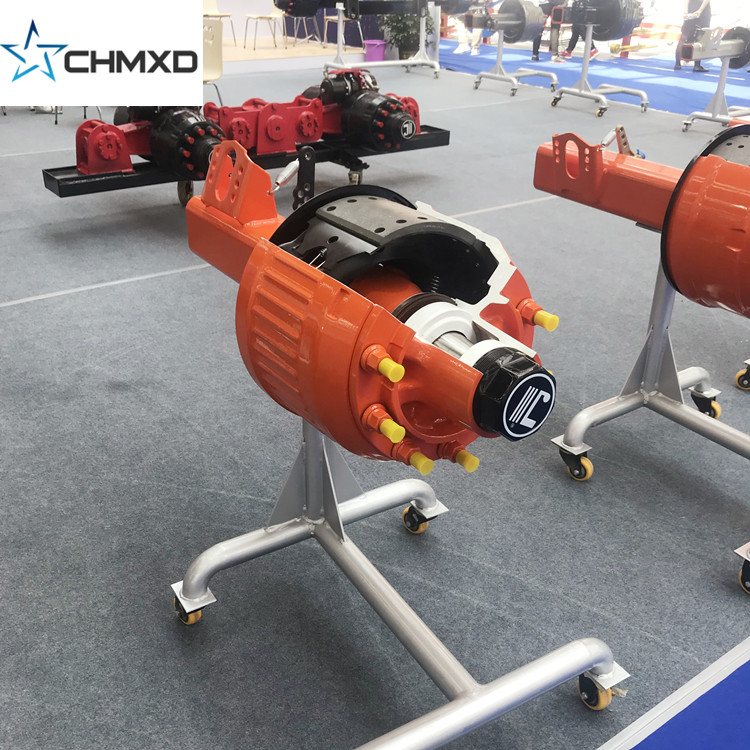

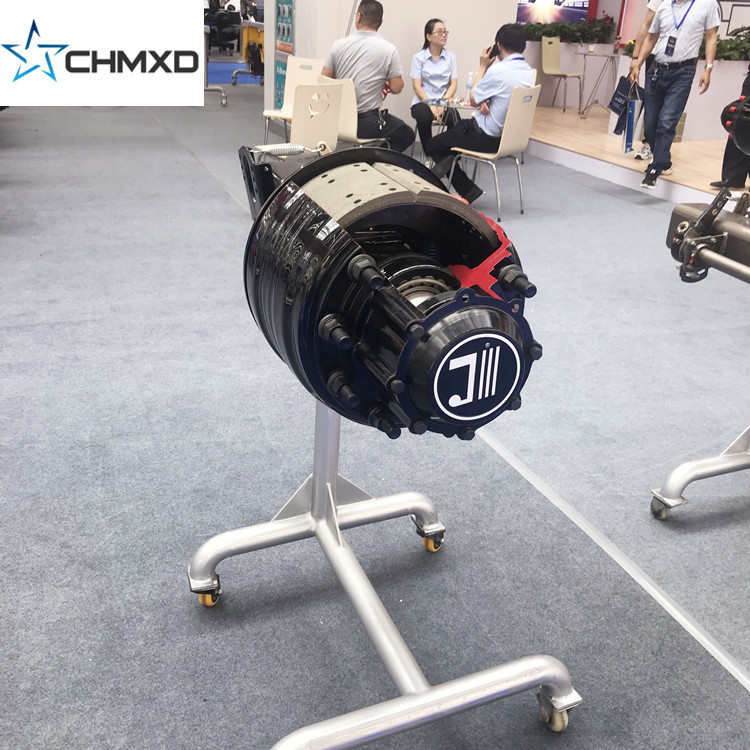

Detailed Images

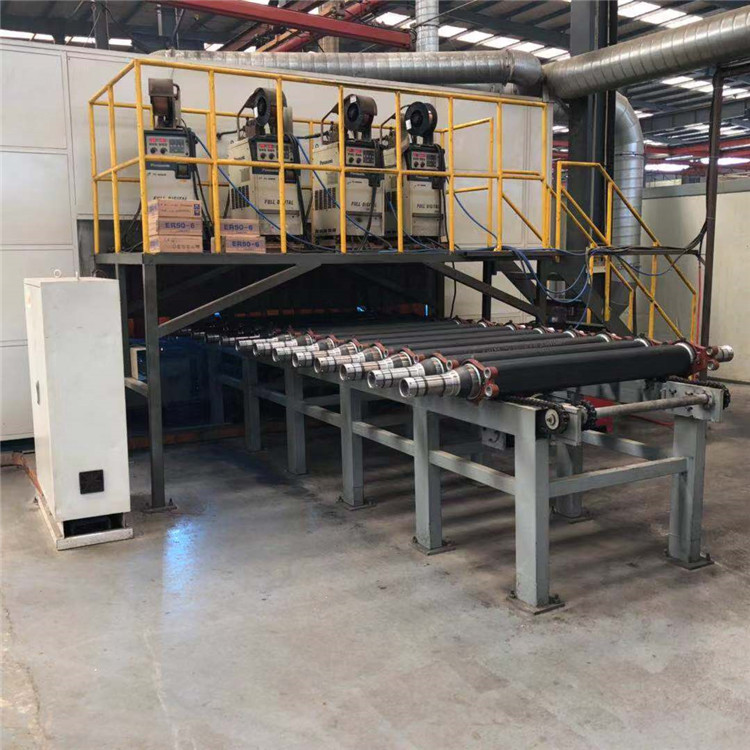

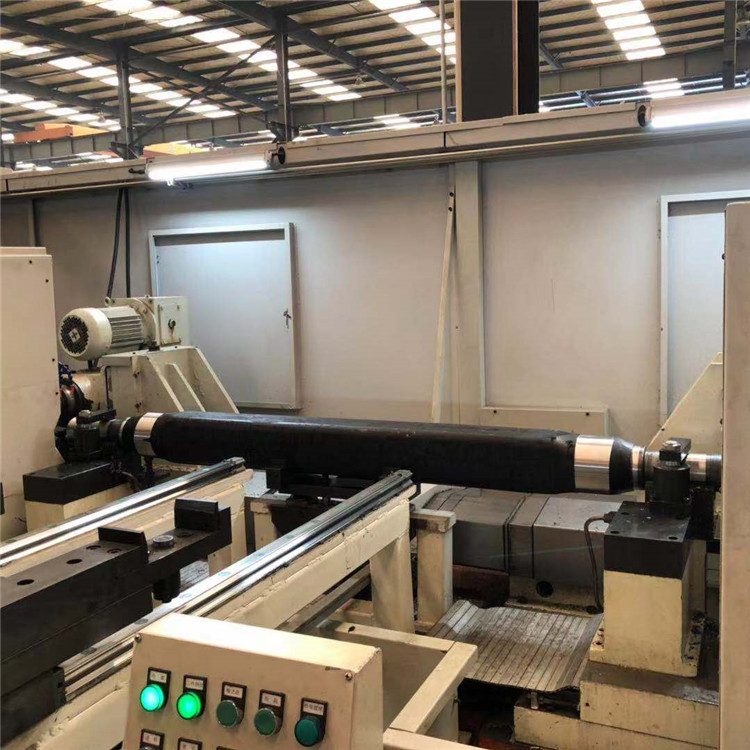

Production line -- thermoforming -- heat treatment: the use of outer spray technology, internal and external structure and
organization more uniform, greatly improve the bending resistance,torsion resistance, long fatigue life characteristics --
sandblasting equipment -- if quenching --CNC grinder -- welding robot -- automatic painting equipment -- nut tightening machine --
axle assembly line -- axle products

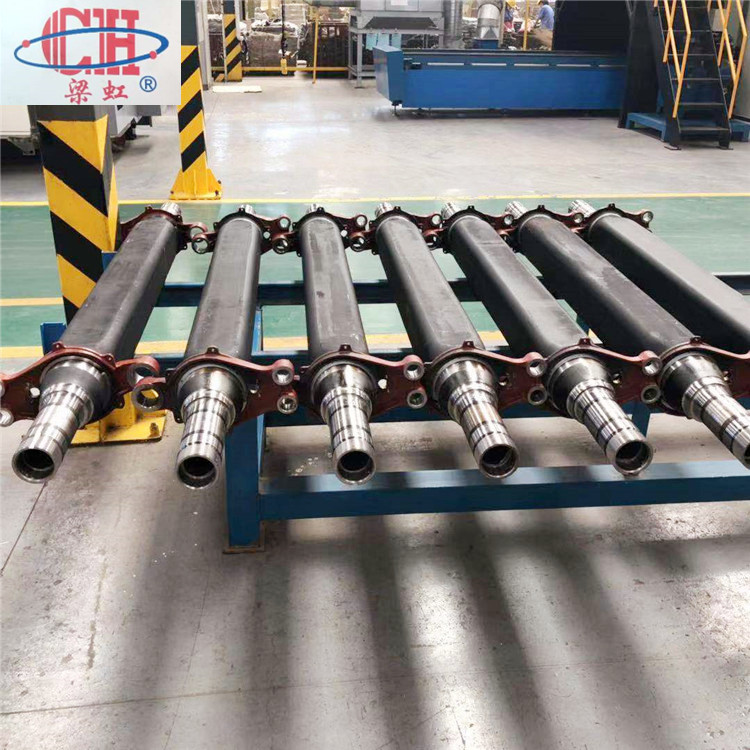

1. Integral high quality low alloy axle tube with strong bearing capacity and high flexural strength.
2. Integral modulation and induction quenching optimization processing, high precision mechanical processing
3. Environmental protection asbestos - free brake shoes, wear - resistant life increased by more than 25%
4. Strong interchangeability of brake components and s-type camshaft make braking more flexible and reliable
5. Using mobil XHP222 grease, longer maintainable time
6. The bearings are designed for heavy duty vehicles with strong interchangeability
7. Unique and beautiful design of steel hubcap, with O - ring seal, good sealing performance
8. Optional ABS anti-lock brake system
Related Products
Certifications
Packing & Delivery
FAQ
WHY CHOOSE OUR PRODUCTS?
1,We have more than 10 years experience in the trailer industry. All kinds of special vehicles can be customized according to
customer requirements.

2. The company has more than 20 senior engineers and 800 workers.

3. We have our own workshop, covering 72968 square meters. Building area 20000 square meters

4. The most reliable supplier. Exports to more than 80 countries.

5. Our company is a modern enterprise integrating R&D, design, manufacturing and sales.

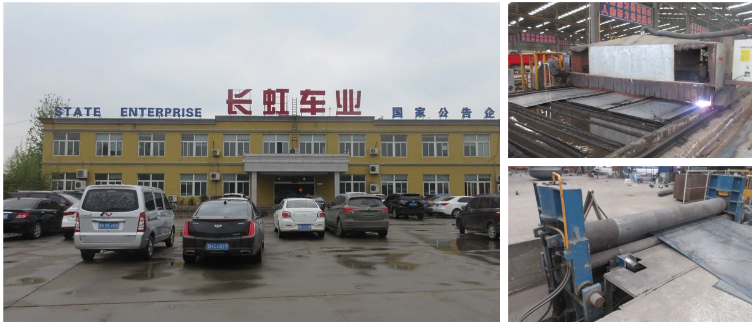

Company Introduction
